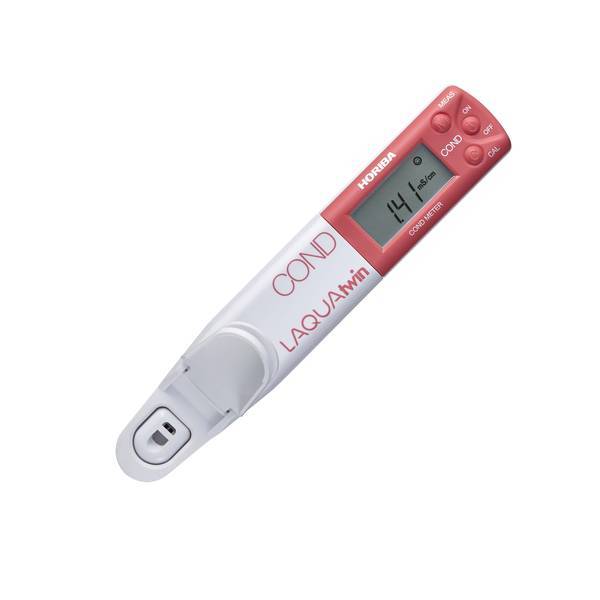

Conductivity Meter - LAQUAtwin EC 22
Part Code: 3999960126
- Waterproof IP67
- Replaceable sensor
- Auto Stable or Auto Hold measurement
- Automatic temperature compensation
- Auto buffer recognition
- Auto power off (30 mins)
- 2x CR2032 Li battery: 400 hours life
- Packed in handy carrying case
- Supplied with required calibration solutions
- Material: ABS, Epoxy
- Display: Custom monochrome LCD
- Operating conditions: 5 to 40C; 85% humidity
- Warranty: 2 years on meter; 6 months on sensor
- Click here for buffers and standards for this meter
Specifications
| Model | B-771 |
| Measurement principle | 2 AC bipolar |
| Minimum sample volume | 0.12 mL or more |
| Measurement range | Conductivity: 0 to 19.9 mS/cm (0 to 1.99 S/m) Salt: 0 to 1.1% TDS: 0 to 9900 ppm |
| Display range*1 | 0 to 199 mS/cm (0 to 19.9 S/m) |
| Range and Resolution | 1) 0 to 199 mS/cm : 1 mS/cm 2) 0.20 to 1.99 mS/cm : 0.01 mS/cm 3) 2.0 to 19.9 mS/cm : 0.1 mS/cm 4) 20 to 199 mS/cm : 1 mS/cm |
| Calibration | Two-point*2 |
| Accuracy*3 | 1digit (for each range)*4 |
| Functions | Salt/TDS Measurement Auto range change Temperature conversion (2% fixed) IP67 Water/Dust proof*5 Auto hold Automatic power off (15 minutes) |
| Display | Custom (monochrome) digital LCD |
| Operating temperature/ humidity | 5 to 40C, 85% or less in relative humidity (no condensation) |
| Power | CR2032 batteries (x2) |
| Battery life | Approx. 400 hours in continuous use |
| Main Material | ABS epoxy |
| Dimensions /Mass | 164 mm 29 mm 20 mm (excluding projections) / Approx. 45 g (meter only, without batteries) |
*1 The display value flashes when out of the range.
*2 Selectable between one-point and two-point calibrations. High conductivity standard solution (12.9 mS/cm) is sold separately.
*3 Repeatability in measurement of a standard solution after calibration.
*4 1) 0.5 mS/cm (0 to 199 mS/cm ) 2) 0.05 mS/cm (0.20 to 1.99 mS/cm) 3) 0.5 mS/cm (2.0 to 19.9 mS/cm) 4) 0.5 mS/cm (20 to 199 mS/cm)
*5 IP67: no failure when immersed in water at a depth of 1 meter for 30 minutes. But the product can not be used underwater.
If this meter does not meet your specification, please do not hestiate to contact us on 02 8706 5400 as we have a wide range.
(3999960126)
| SKU | 3999960126 |
| Brand | Horiba |
| Shipping Weight | 0.4500kg |
| Shipping Width | 0.185m |
| Shipping Height | 0.030m |
| Shipping Length | 0.105m |
| Unit Of Measure | each |
